Lab-Scale Polymer Processing: The Power of Batch Micro-Compounding

Published: August 28, 2025 · Reading time: 5 minutes

Introduction

When developing new polymer materials, one of the most challenging steps is moving from an idea to a testable concept. At this stage, researchers often go through many cycles of trial and error, changing formulations, adjusting process conditions, and testing material compatibility. Using large-scale equipment for this early work can be wasteful and slow. Traditional twin-screw extruders, for example, need a lot of material, take time to set up, and are not always practical for screening many small variations.

Batch micro-compounding provides a practical solution to this problem. Instead of using kilograms of polymer, benchtop systems have been developed that reproduce the conditions of industrial compounding while working with only a few grams of material. This makes them ideal for laboratories that want to test new formulations, optimize processes, or study material behavior without wasting valuable resources.

Features of The Micro-Compounder

The micro-compounder is designed with features that make small-scale processing both accurate and efficient:

• Small batch size: Only 2–40 mL of material is required, which makes the system particularly valuable when working with rare or costly polymers. This capability is also critical for testing newly synthesized polymers or additives that may only be available in laboratory-scale quantities of a few grams.

• Easy feeding system: Materials (powders, solids, or liquids) can be loaded directly from the top through a gravity feed, either by hand or with a dedicated manual feeder. This means no special feeding equipment is needed to incorporate different forms of raw materials.

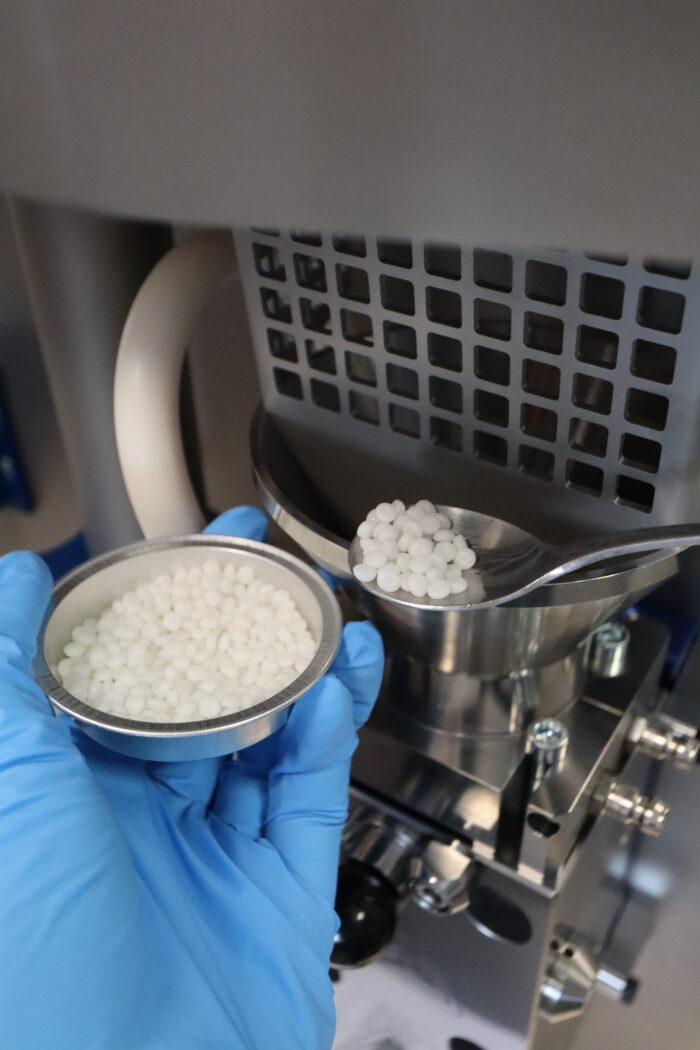

Figure 1. Loading polymer pellets into the hopper

• Tunable residence time: In batch micro-compounding, the molten polymer circulates continuously through the recirculation channel. A large fraction of the material is constantly exposed to shear forces, promoting efficient mixing and dispersion. With the valve kept closed, the system mimics the behavior of an extruder with an infinitely long length-to-diameter (L/D) ratio, allowing extended residence times under controlled conditions. Once the valve is opened, the defined residence time is complete, and the material is directed toward the die for extrusion. In this way, the residence time in batch mode is precisely governed by the valve position.

• Conical barrel design: The conical screw barrel facilitates smooth feeding of the material while simultaneously compressing and pressurizing the molten polymer into a smaller volume. This design minimizes potential pressure drops within the recirculation channel, ensuring consistent flow and stable processing conditions.

• Twin-screw mixing: Fully intermeshing twin screws create a dynamic mixing environment in which material is continuously transferred from one screw to the other. This intermeshing action generates strong shear and both distributive and dispersive mixing, which significantly improves the dispersion of fillers, additives, and nanoparticles. At the same time, the constant exchange of polymer melt between the screws minimizes dead zones, ensuring a uniform composition throughout the batch. Another important feature is the self-wiping action: each screw cleans the surface of the other, preventing material build-up on the screw flights. This reduces the risk of degradation, shortens cleaning time, and improves reproducibility. Because the screws provide continuous forward pumping, even highly viscous polymers or heavily filled formulations—such as those containing carbon fibers, glass fibers, or nanoclays—can be processed efficiently.

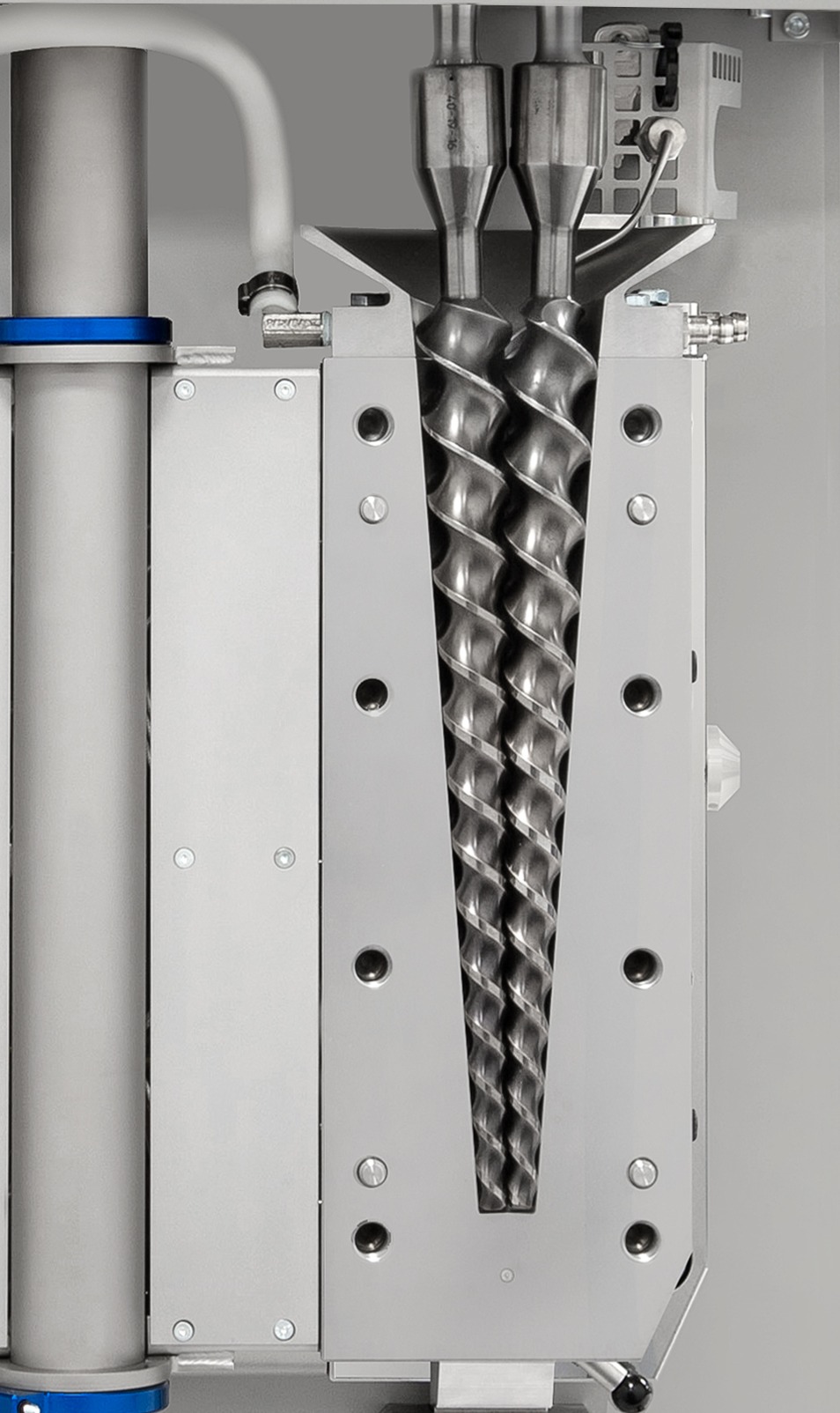

Figure 2. Twin screws inside the micro-compounder

Together, these features ensure that even small batches behave as they would in large-scale processing, making results reliable and reproducible.

Two Operating Modes: Batch and Continuous

The system can be used in two ways, thanks to a recirculation valve that controls how the material flows:

• Batch Mode (Valve Closed):
  In this mode, the polymer melt circulates inside the compounder for as long as the operator chooses. Because most of the material is always under shear, mixing is very effective. Once the right mixing time is reached, the valve is opened and the material exits through the die. This is useful for studies on blending, dispersion, and chemical reactions, where extra residence time is needed.

• Continuous Mode (Valve Open):
  Here, material can be fed continuously while it is extruded at the same time. This mode is best suited for producing films, 3D printing filaments, fibers, or impregnated composites.

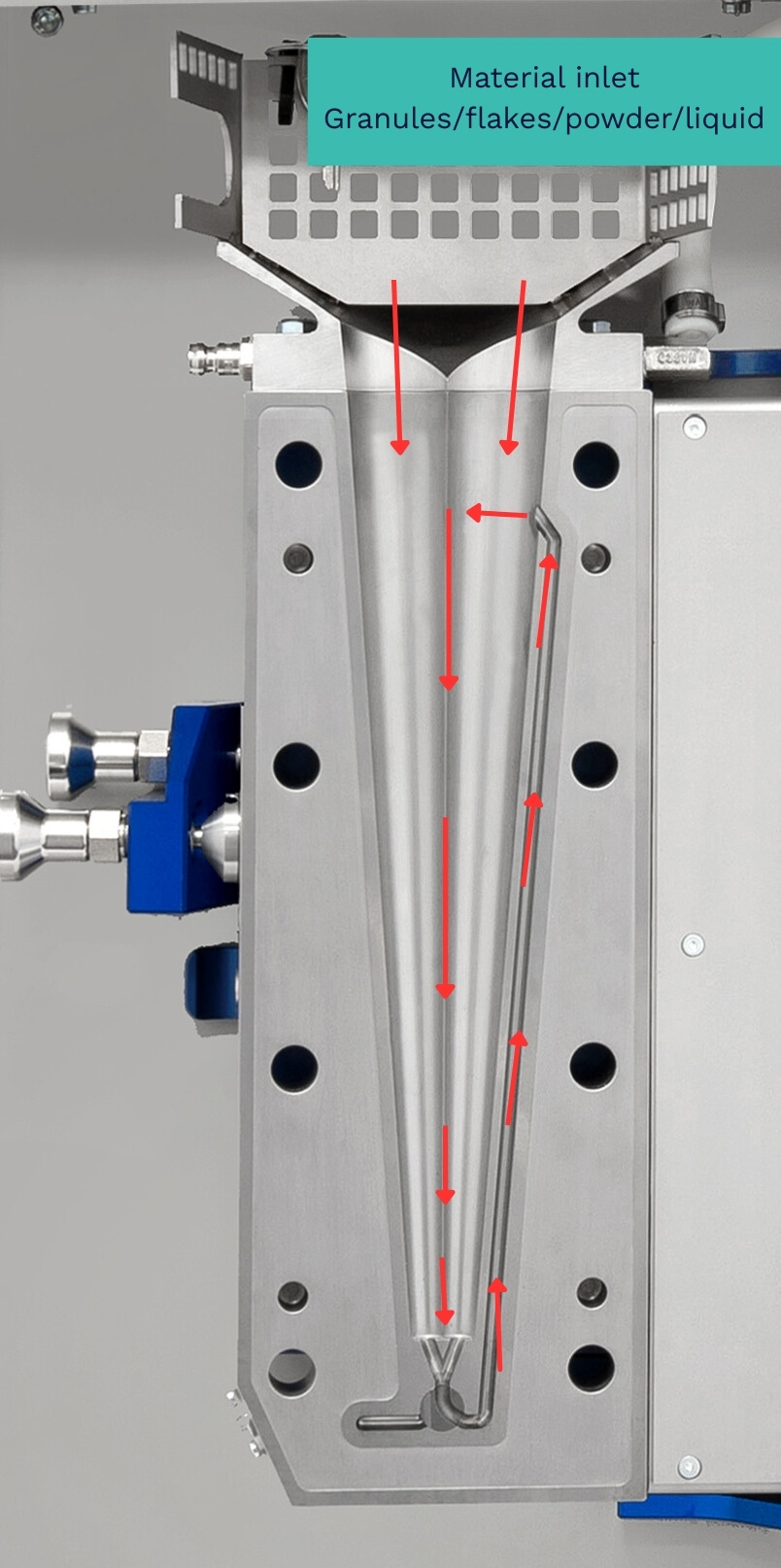

Figure 3. Batch mode – flow of material inside the barrel

Why Small-Scale Compounding Makes a Big Difference

Batch micro-compounding is essentially a way to reproduce the conditions of large-scale extrusion on a much smaller, lab-friendly scale.

Researchers can:

• Rapid iteration: Multiple formulations can be tested in a single working day.

• Resource efficiency: Minimal material use reduces cost and waste.

• High-quality data: Reproducible results that scale well to industrial processes.

• Versatility: Applicable to thermoplastics, composites, elastomers, and reactive systems.

• Integration-ready: Compatible with downstream testing such as rheology, mechanical analysis, and prototype shaping.

With a micro-compounder, laboratories gain access to an efficient, reliable tool that simulates industrial conditions while saving material, time, and energy. This makes it possible to accelerate research and move faster from idea to fiber, film, or part.

Application Examples and Value of Batch Micro-Compounding

Batch micro-compounding has become an indispensable method for researchers who need to process small quantities of polymers while obtaining reproducible, industry-relevant data. Micro-compounders are used across a broad spectrum of research areas, including:

• Polymer blends such as ABS/PA6, PC/PBT, or PA6/EPDM

• Nanocomposites with CNT/PP, NC/PLA, or nano-Ag/PCL

• Bio-composites including flax fiber/PBAT, wood flour/PP, or chicken feather/PLA

• Slurry mixing for advanced systems such as battery compounds or all-cellulosic formulations

• Rubber and elastomer compounding like NR/CB and NR/SBR blends

• Food-related processing including meat analogues, flavor reactions, and extrusion cooking

• Conventional compounding of color masterbatches, filled systems, or fiber-reinforced plastics

• Reactive extrusion for thermoplastic polyurethanes, chain extension, grafting, or degradation studies

Conclusion

As timelines shorten and material systems grow more complex, micro-compounding offers a reliable way to move from idea to validated concept quickly. By bringing industrial-level processing into the laboratory, it enables efficient development of new materials and accelerates the transition from research to application.
