Processing Solution

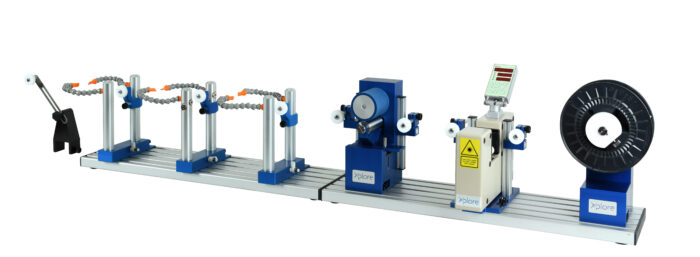

The Xplore 3D Filament Line is a compact, lab-scale filament extrusion system for the rapid development and screening of custom FDM/FFF 3D printing filaments, using only grams of material per test.

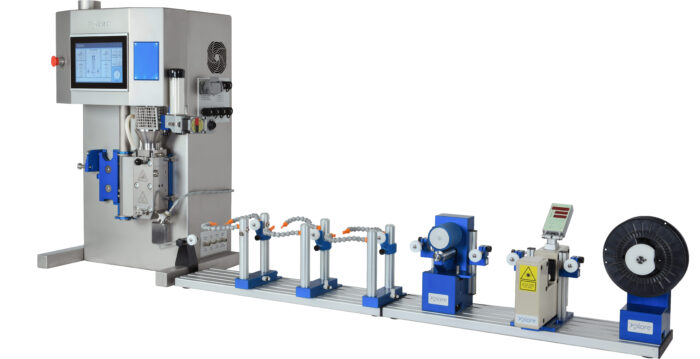

Fully integrated with Xplore Micro-Compounders, it lets researchers formulate new polymer compounds and convert them directly into high-quality printable filament, ready for printability and performance evaluation.
- One integrated workflow: material formulation and filament extrusion in a single system, with no material transfer between steps.
- Minimal material use: screen new formulations on a gram scale, cutting development time and cost.
- A clear path to scale-up: validate printability and performance before committing to commercial production.
Capabilities
- Material Compatibility: Process commodity, engineering, recycled, bio-based, filled, and reinforced polymers, including PEEK, PEI, PPS, PA, PC, TPU, PLA, ABS, and PETG.

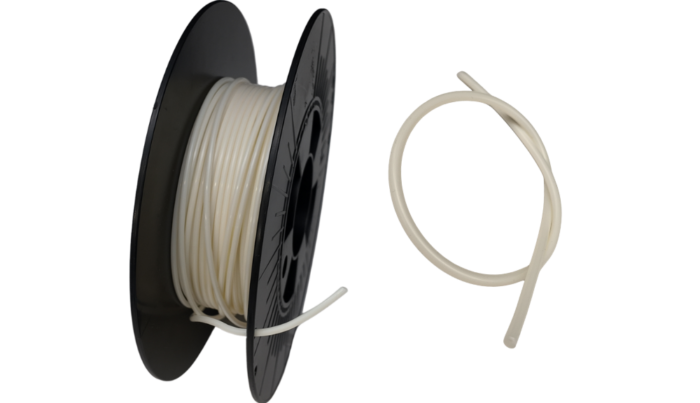

- Representative Samples: Produce filaments for printability testing, characterization, and evaluation.
- Process Optimization: Fine-tune processing conditions for consistent filament quality.
Key Features

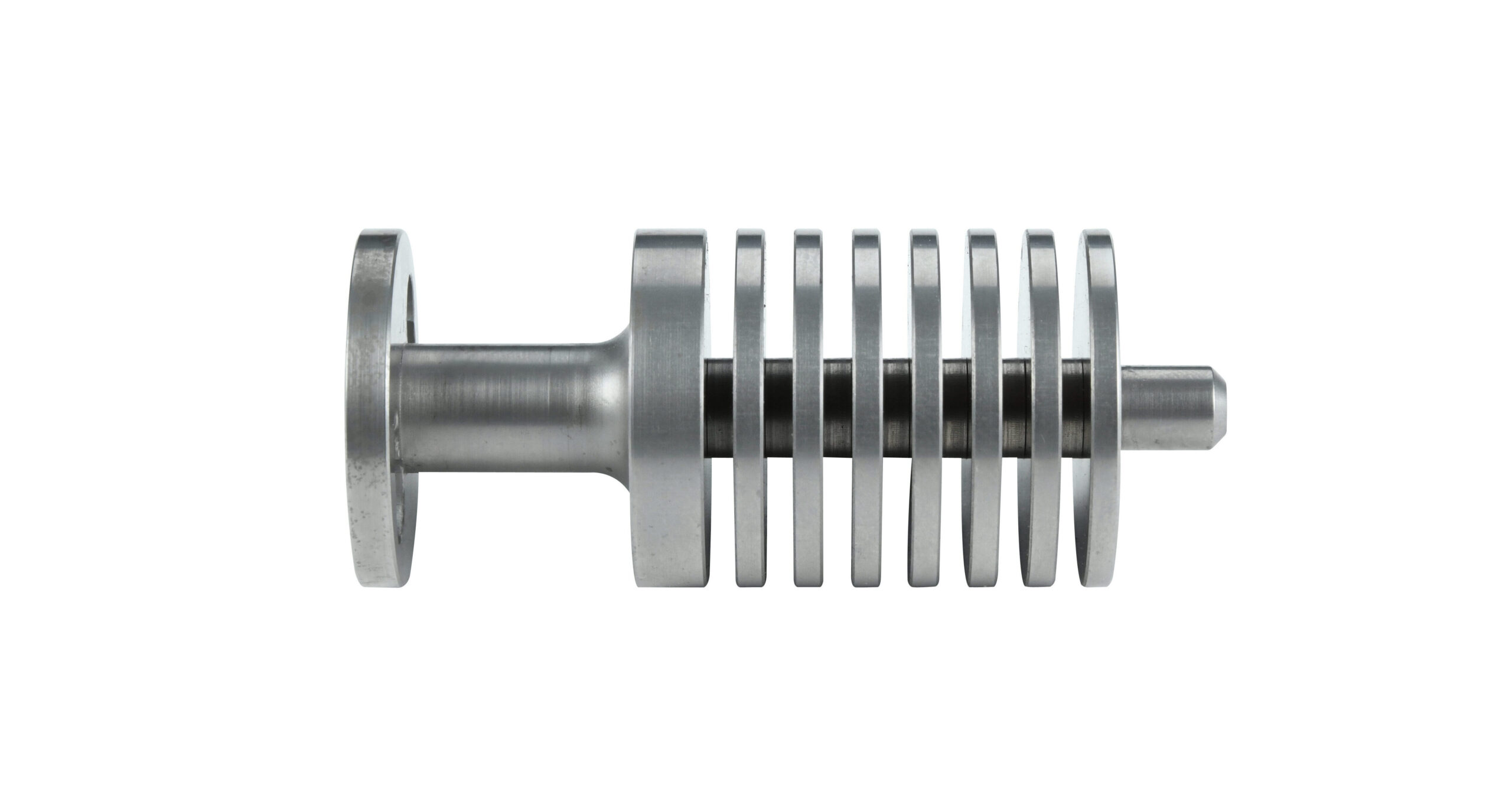

- Precision Extrusion: Interchangeable heated and non-heated dies.
- Diameter Monitoring: Inline laser measurement for dimensional accuracy.
- Adjustable Processing: Tunable parameters for consistent filament quality.
- Controlled Winding: Adjustable torque-controlled winding.
- Flexible Cooling: Air cooling with optional water cooling.
- Process Monitoring: Real-time process visualization and data monitoring.
Research Areas
- Novel Filament Formulations: Development of new FDM/FFF materials and formulations.
- Composite Filaments: Reinforced, filled, and high-performance material systems.
- Sustainable & Functional Materials: Recycled, bio-based, biodegradable, conductive, ESD, flame-retardant, and shape-memory materials.
- Process & Performance Studies: Process optimization, printability, and structure–property studies.
Applications
- Prototyping & End-Use Parts: Functional prototypes, customized parts, and low-volume production.
- Tooling & Manufacturing: Jigs, fixtures, and manufacturing tooling.
- Automotive & Aerospace: Lightweight, high-performance components with complex geometries.
- Medical & Healthcare: Medical models, surgical guides, orthotics, and prosthetic components.
- Robotics & Consumer Products: Customized components for robotics, humanoid systems, and consumer products.
- Education & Materials Research: Academic research, material development, and educational applications.
—
